dot matrix OLED Modules

Graphic OLED module

  • Evertron is a professional graphic (dot matrix) OLED modules manufacturer. The size from 0.42 inch to 5.5 inch with various colors and interface.

        a, high brightness and sunlight readable

        b, low consumption

        c, wide operating temp: -40°C~+80°C

        d, wide viewing angle, almost close to free viewing angle



    We always keep some stock for popular colors and size, please contact us freely.


Contact Datasheet

Product description

SizeResolutionPart NoModule SizeVAColorInterfaceVoltageDrive ICRemark
0.42 inch72*40VG-7240TSWAG0212*11*1.410.196*6.180White/black4 SPI/I2C1.6V~3.3VSSD1315
0.42 inch72*40VG-7240TSWAG0212*11*1.410.196*6.180White/black4 SPI/I2C1.6V~3.3VSSD1306
0.48 inch72*32UG-7232TSWCG0114.90*11.29*1.412.460*6.146White I2C1.6V~3.3VSSD1306
0.49 inch64*32UG-6432TLBEG0214.5*11.6*1.212.58*6.98White/blueI2C1.6V~3.3VSSD1306
0.66 inch64*48UG-6448HSWEG0318.46*18*1.215.42*12.06White/blue4 SPI/I2C/8 bits   6800/80801.6V~3.3VSSD130628pins
0.66 inch64*48UG-6448KSWEG1518.46*18*1.215.42*12.06White/blue4 SPI/I2C/8 bits   6800/80801.6V~3.3VSSD130620pins
0.6 inch64*64UG-6464TDDBG0115.0*17.5*1211.73*11.73Full   color4 SPI1.6V~3.3VSSD1357ZRGB full color
0.69 inch96*16UG-9616TSWCG0226.3*8.0*1.219.26*5.18White/blueI2C1.6V~3.3VSSD1306
0.83 inch96*39UG-9639TSWEG0323.8*16.2*1.221.37*9.86White/blue4 SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1306
0.84 inch96*16UG-9616TLBBG0229.1*9.2*1.223.104*5.504White/blueI2C1.6V~3.3VSSD1306
0.86 inch96*32UG-9632TSWZG0229.1*9.2*1.223.10*8.06White I2C1.6V~3.3VSSD1316
0.87 inch128*32VG-2832TSWUG0129.0*8.7*1.222.856*6.824White 4 SPI1.6V~3.3VSSD1316
0.91 inch128*32VG-2834KSWEG0230.0*11.5*1.224.384*7.584White/blueI2C1.6V~3.3VSSD1306
0.95 inch96*64UG-9664HDDAG0125.7*22.2*1.222.14*15.42Full   color4 SPI/8 bits   6800/80801.6V~3.3VSSD1331ZRGB full color
0.96 inch128*64UG-2864KSWEG0126.70*19.26*1.423.744*12.864White/blue3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1306
0.96 inch128*64VG-2864KSWEG2626.70*19.26*1.423.744*12.864White/blue3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1306long FPC (soldering)
0.96 inch128*64VG-2864TMBEG4726.70*19.26*1.423.744*12.864White/blue3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1306long FPC (ZIF)
1.04 inch128*32VG-2832TSWGG0129.8*14.5*1.227.58*8.38White3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1306soldering type
1.04 inch128*32VG-2832TSWGG0529.8*14.5*1.227.58*8.38White3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1306connector type
1.1 inch128*36UG-2836TSWAG0631.4*16.2*1.228.86*9.54White3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1305
1.12 inch96*96UG-9696TDDCG0225.9*30.1*1.221.852*21.852Full   color4 SPI/8 bits   6800/80801.6V~3.3VSEPS114ARGB full color
1.27 inch 128*96UG-2896GDEAF1133.7*26.9*1.627.708*21.280Full   color3SPI/4SPI/8 bits   6800/80801.6V~3.3VSSD1351RGB full color

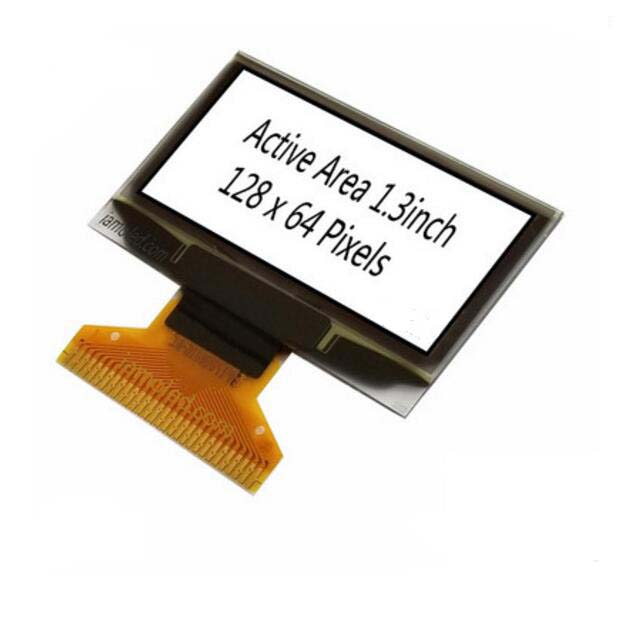

1.3 inch128*64VG-2864KSWLG0134.5*23.0*1.431.42*16.7White/blue3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD130630pins
1.3 inch128*64VG-2864KSWLG2834.5*23.0*1.431.42*16.7White/blue3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD130616pins
1.3 inch128*64VG-2864KSWLG2334.5*23.0*1.431.42*16.7White/blue3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1306long FPC 30pin   (soldering)
1.3 inch128*64VG-2864KSWLG0534.5*23.0*1.431.42*16.7White/blue3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD130630pins(ZIF)
1.45 inch160*128UG-6028GDEAF0135.8*30.8*1.630.780*25.024Full   color4SPI/8bits 9bits   8080/6 bits RGB IF1.6V~3.3VSEPS525RGB full color
1.5 inch128*128UG-2828GDEDF1133.8*34.0*1.428.855*28.864Full   color3SPI/4SPI/8 bits   6800/80801.6V~3.3VSSD1351U3RGB full color
1.5 inch128*128UG-2828KSWHG0133.8*36.5*1.428.86*28.86White8 bits 6800/80801.6V~3.3VSSD1327Z
1.54 inch128*64UG-2864KSYMG0142.04*27.22*1.437.052*19.516White/yellow/blue4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1309
1.54 inch128*64UG-2864KSYMG2542.04*27.22*1.437.052*19.516White/yellow/blue4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1309long FPC (ZIF)
1.54 inch128*64UG-2864KSYMG0242.04*27.22*1.437.052*19.516White/yellow/blue4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1309
1.68 inch128*32UG-2832GSWFG0250.5*11.2*1.644.22*8.22White3SPI/4SPI/I2C1.6V~3.3VSSD1307

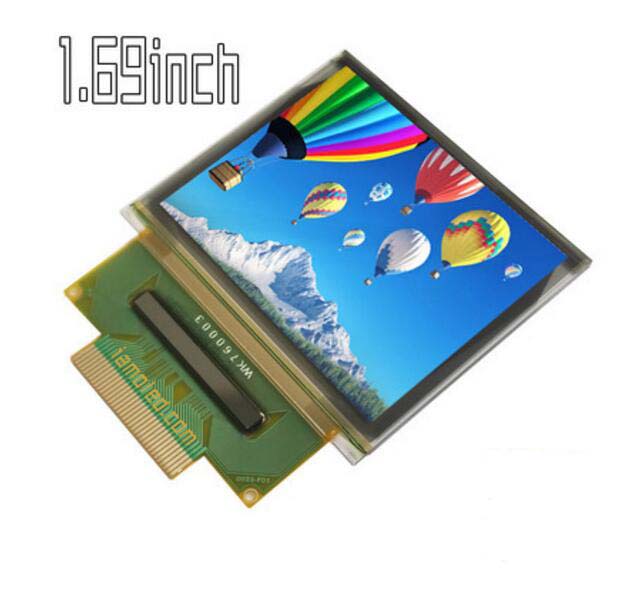

1.69 inch160*128UG-6028GDEBF02
    UG-6028GDEBF01		39.9*34.0*1.635.575*28.864Full   color4SPI/8bits 9bits   8080/6 bits RGB IF1.6V~3.3VSEPS525RGB full color
1.71 inch128*32UG-2832ASOHG0550.50*15.75*244.22*12.54Amber3SPI/4SPI/I2C1.6V~3.3VSSD1307
2.0 inch128*32UG-2832KSWMG0155.6*21.8*1.452.54*14.62White3SPI/4SPI/8 bits   6800/80801.6V~3.3VSSD1309Z
2.08 inch256*64UG-5664GSWHG0160.5*19.0*1.653.18*14.78White3SPI/4SPI/I2C/8 bits   6800/80801.6V~3.3VSH1122
2.23 inch128*32UG-2832ASGG0162*24*1.457.02*15.10White/yellow/blue/green4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1305old model
2.23 inch128*32UG-2832ASGM0162*24*1.457.02*15.10White/yellow/blue/green4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1309new model
2.42 inch128*64UG-2864ASGPG0160.5*37.0*1.657.01*29.49White/yellow/blue/green4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1309long FPC (ZIF)
2.42 inch128*64UG-2864ASGPG1460.5*37.0*1.657.01*29.49White/yellow/blue/green4SPI/I2C/8 bits   6800/80801.6V~3.3VSSD1309
2.7 inch128*64UG-2864ASYIG0173.00*41.86*1.663.41*32.69White/yellow/green3SPI/4SPI/8 bits   6800/80801.6V~3.3VSSD1322
2.7 inch128*64UG-2864ASWUG0173.00*41.86*1.663.41*32.69White/yellow/green3SPI/4SPI/8 bits   6800/80801.6V~3.3VSSD1309long FPC (ZIF)
2.7 inch128*64UG-2864ASWDT0173.00*41.86*1.663.41*32.69White/yellow/green4SPI/8 bits 6800/80801.6V~3.3VSSD1325long FPC (ZIF),with   bezel
2.8 inch256*64UG-5664ALBDF0184.0*25.8*1.671.104*19.264White/yellow/blue/green4SPI/8 bits 6800/80801.6V~3.3VSSD1322

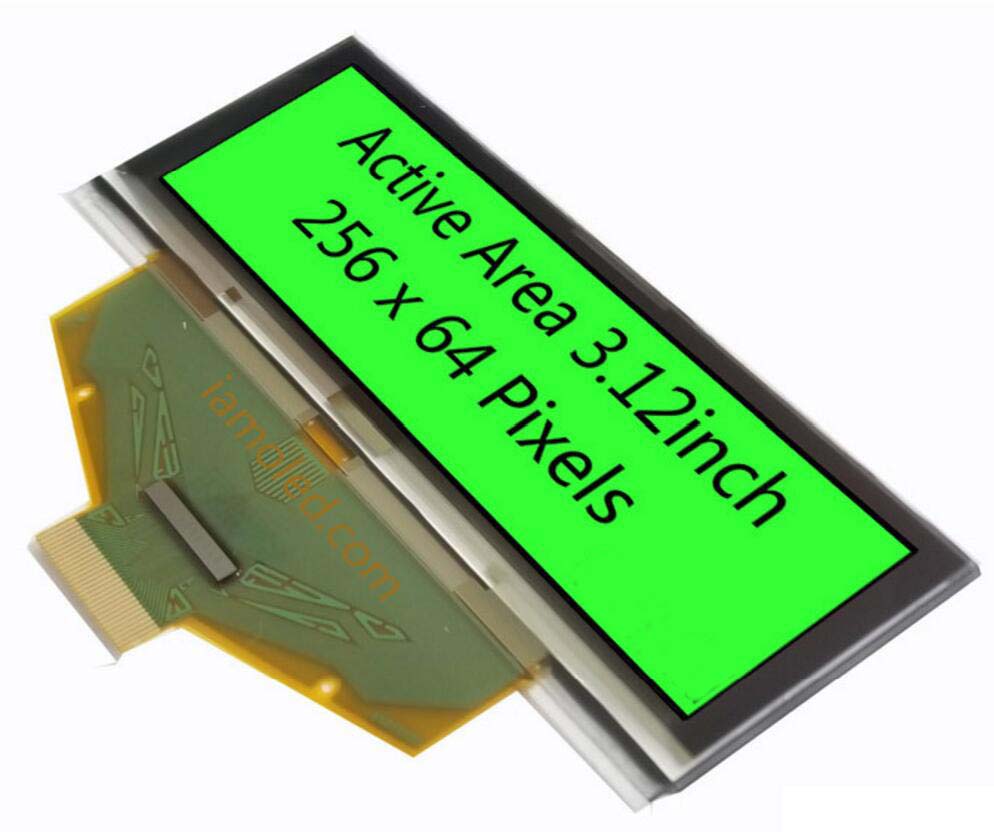

3.12 inch256*64UG-5664ALBEF0788.0*27.8*1.678.78*21.18White/yellow/blue/green4SPI/8 bits 6800/80801.6V~3.3VSSD1322
5.5 inch256*64UG-5664ASGGF01146*45*1.6137.65*35.89Green/yellow3SPI/4SPI/8 bits   6800/80801.6V~3.3VSSD1322
