Graphic LCD modules

Graphic LCD Display

  • Evertron is a professional graphic LCD modules manufacturer,we provide various standard graphic LCD modules with different size,display colors,voltage, interface etc




    We support any custom requirements for graphic LCD module, please contact us freely.


Contact Datasheet

Product description

Display   TypePart NoModule SizeVADrive ICInterfaceVoltageColor

122x32

EG12232A84.0*44.0*13.060.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232B84.0*44.0*13.060.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel5VYellow/blue/grey/black
EG12232B-484.0*44.0*13.060.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel5VYellow/blue/grey/black
EG12232C74.0*27.5*17.555.0*18.5SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232D65.8*27.3*1754.8*18.3SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel5VYellow/blue/grey/black
EG12232E87.0*29.0*13.060.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232EB80.8*35.0*12.860.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel5VYellow/blue/grey/black
EG12232I(same as IB size)80.0*36.0*12.860.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232IB(same as I size)80.0*36.0*12.860.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232IE76.5*34*8.760.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232J66.0*27.6*17.155.0*18.3SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232K62.0*40.0*11.241.0*15.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232M84.0*44.0*12.860.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232N72.0*36.0*8.760.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232P110.0*65.0*14.076.0*25.2SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232Q94.0*40.0*15.3060.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232S52.0*52.0*11.541.0*15.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232T84.0*44.4*12.860.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232R52.0*79.0*10.041.0*15.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232L76.5*28.0*8.760.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232LB76.5*28.0*12.860.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232F

SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232H84.5*47.1*12.573.9*21.9SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232W84.0*44.0*12.860.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12232V85.0*29.0*13.060.0*18.0SBN1661G   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black

128x32

EG12832A110.0*65.0*14.576.0*25.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG12832B110.0*65.0*14.576.0*25.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG12832E225.0*60.8*12.5185.3*41.4SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12832D110.0*65.0*14.576.0*25.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
128x64EG12864A113.0*65.0*13.073.4*38.8SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG12864B93.0*70.0*13.070.7*38.8SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864C(same as12864I)54.0*50.0*7.543.5*29.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864D93.0*70.0*13.070.7*38.8SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864CC78.0*70.0*12.562.0*44.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864CD78.0*70.0*12.562.0*44.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864DB198.21*76.8*13.070.7*38.8SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864G107.0*85.0*12.088.0*60.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864GB107.0*85.0*12.088.0*60.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864GC116.0*78.0*12.088.0*60.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864H86.6*61.2*13.570.7*38.8SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG12864ID54.0*50.0*7.543.5*29.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864IF54.0*50.0*7.543.5*29.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864I54.0*50.0*7.543.5*29.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864J75.0*54.7*12.560.0*32.6SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864K93.0*70.0*13.072.0*40.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864L78.0*70.0*12.562.0*44.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864LA78.0*74.0*12.562.0*44.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864P113.0*65.0*13.570.7*38.8SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864LB78.0*70.0*12.562.0*44.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864S63.2*54.0*8.549.88*31.32SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864T78.0*70.0*12.562.0*44.0T6963   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864FA78.0*70.0*12.562.0*44.0T6963   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864M95.0*60.0*13.570.7*38.8SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG12864N75.0*52.7*8.960.0*32.6SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
128x128EG128128D69.0*74.0*12.349.0*49.0T6963   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
160x80EG16080D152.5*72.5*8.9160*80SDN8080G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black

EG160128A129.0*102.0*17/12101*82.0T6963   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG160128C129.0*102.0*17/10.2101*82.0T6963   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
192x64EG19264A130*65.0*12.5104*39.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG19264B100.0*60.0*12.084.0*31.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264CA114.0*52.0*12.084.0*31.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG19264D130*65.0*12.5104*39.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264E120.0*62.0*12.5104*39.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264F130*65.0*12.5104*39.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264W100.0*60.0*12.084.0*31.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264H113.0*71.0*12.097.0*48.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264G100.0*60.0*12.084.0*31.0KS0107   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264I100.0*60.0*12.084.0*31.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264J120*62.0*12.5104*39.0SBN0064G   or EQV6800   8-bit Parallel5VYellow/blue/grey/black
EG19264K121.3*62.0*12.5104*39.0SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG19264M157.8*55.0*12.5110.0*37.66SBN0064G   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
240x64EG24064A180.0*62.0*12.3134.0   x 41.0T6963   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG24064B180.0*65.0*14.5132.0*39.0T6963   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black

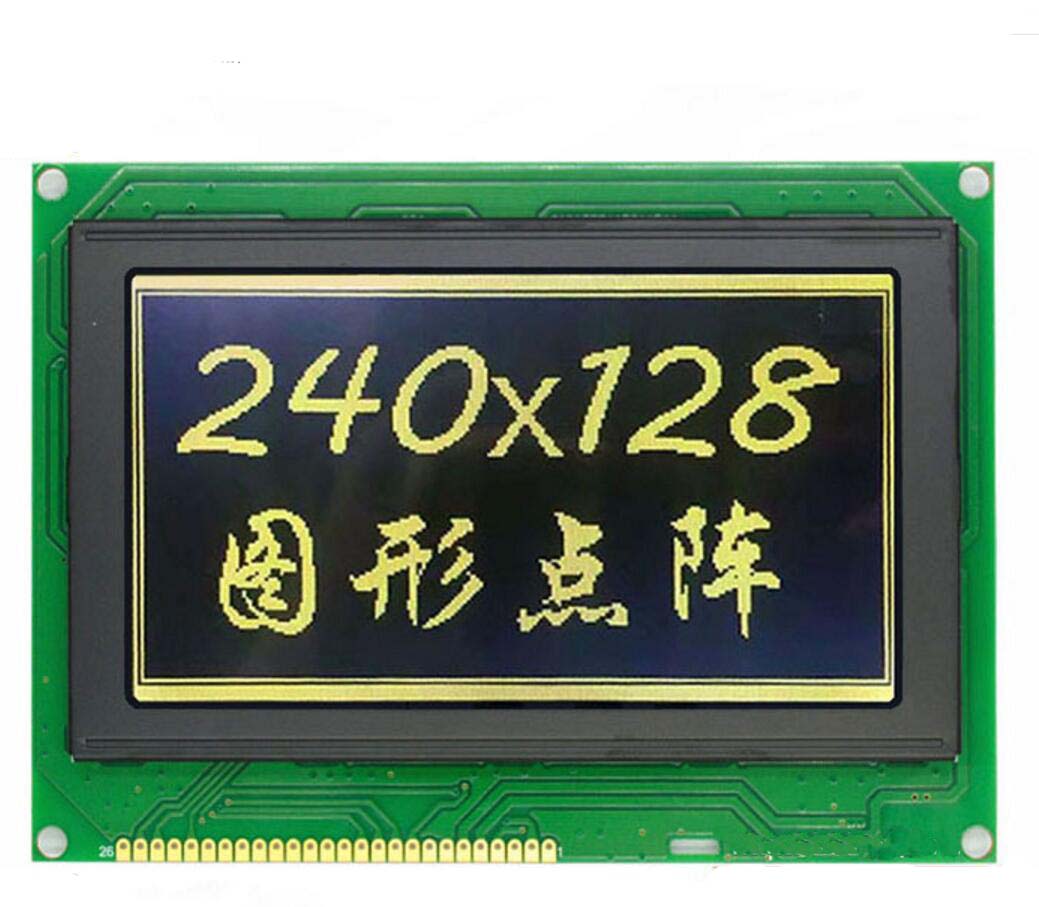

240x128EG240128A144.0*104.0*14.0114.0*64.0T6963   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128B144.0*104.0*14.0114.0*64.0T6963   or EQV6800   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128C180.0*110.0*13.7134.0*76.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128D(instead by B)144.0*104.0*14.0114.0*64.0T6963   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128E144.0*104.0*14.0114.0*64.0T6963   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128EA144.0*104.0*14.0114.0*64.0T6963   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128EB144.0*104.0*14.0114.0*64.0T6963   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128G144.0*104.0*14.0114.0*64.0T6963   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128H152.0*80.8*13.4114.0*64.0SDN8080G   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black
EG240128L241.0*125.5*11.2179.5*101.5T6963   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black

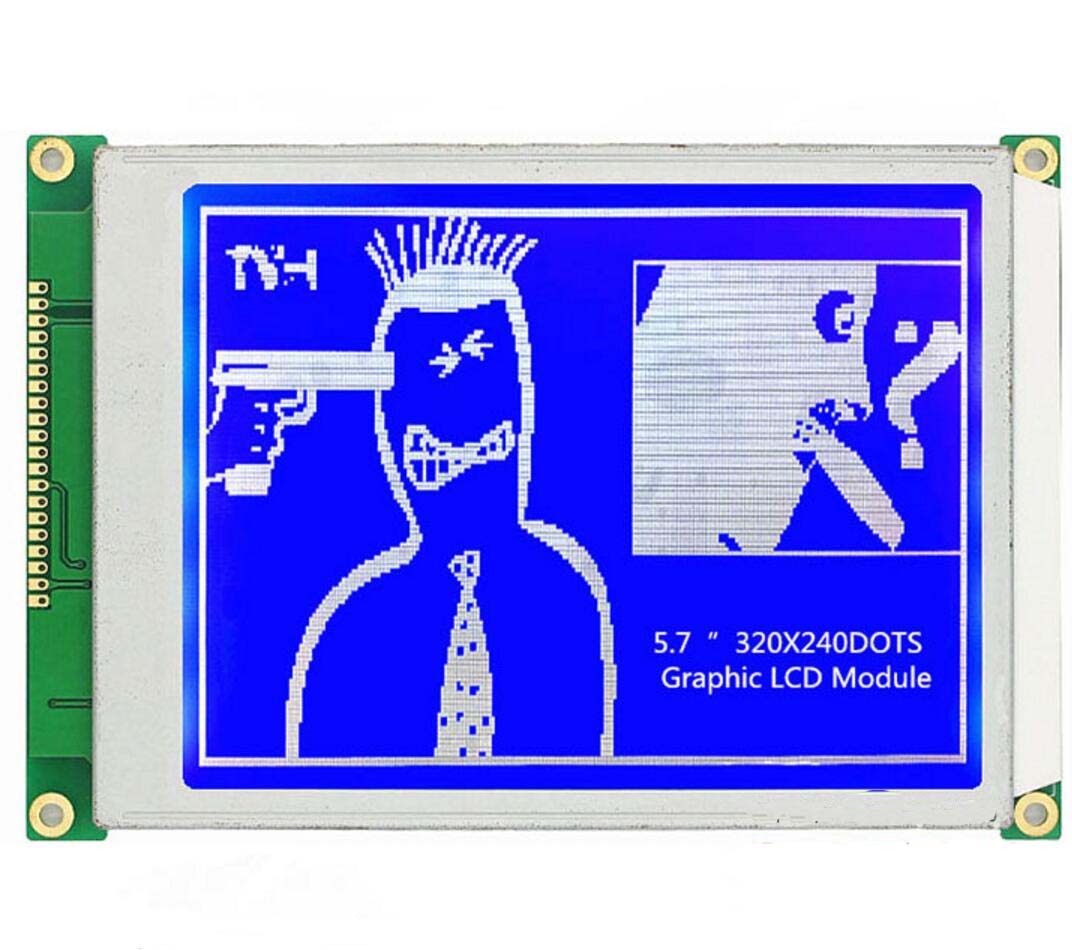

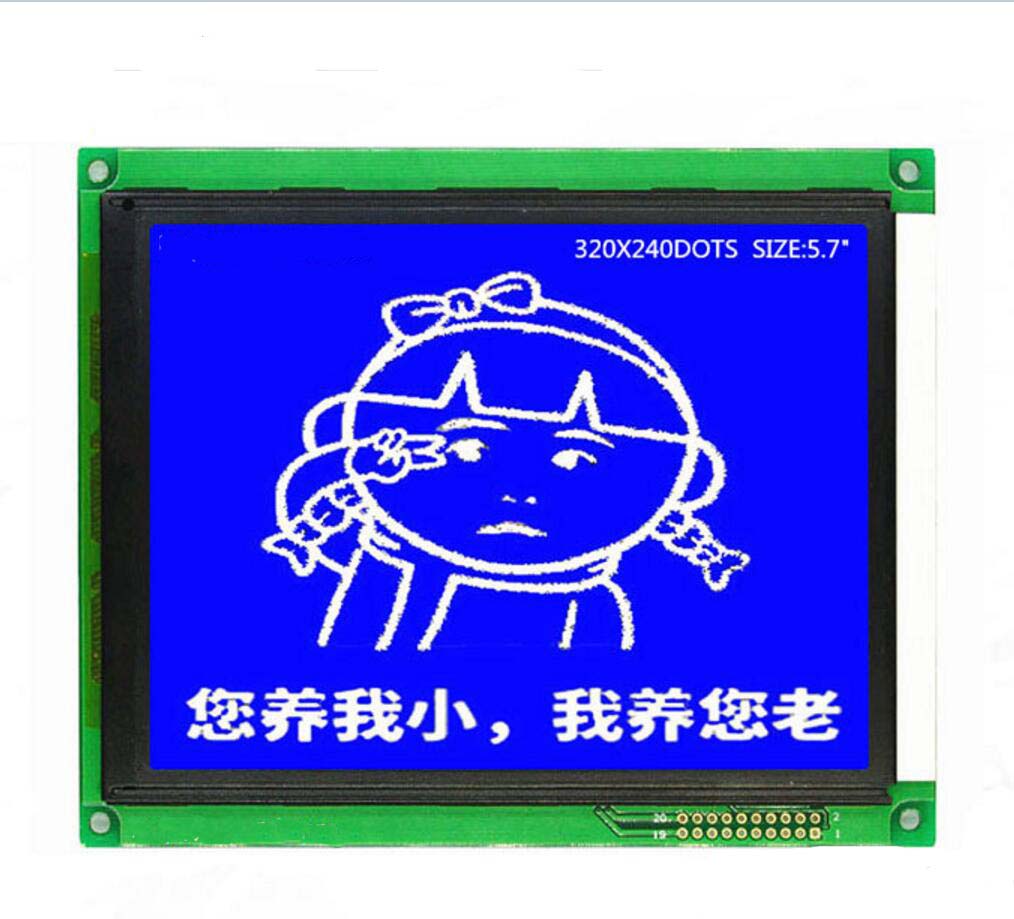

320x240EG320240A160.0*109.0*11.0122.0*92.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5V(TP   optional)Yellow/blue/grey/black
EG320240B160.0*109.0*11.0122.0*92.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5V(TP   optional)Yellow/blue/grey/black
EG320240C160.0*109.0*11.0122.0*92.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black

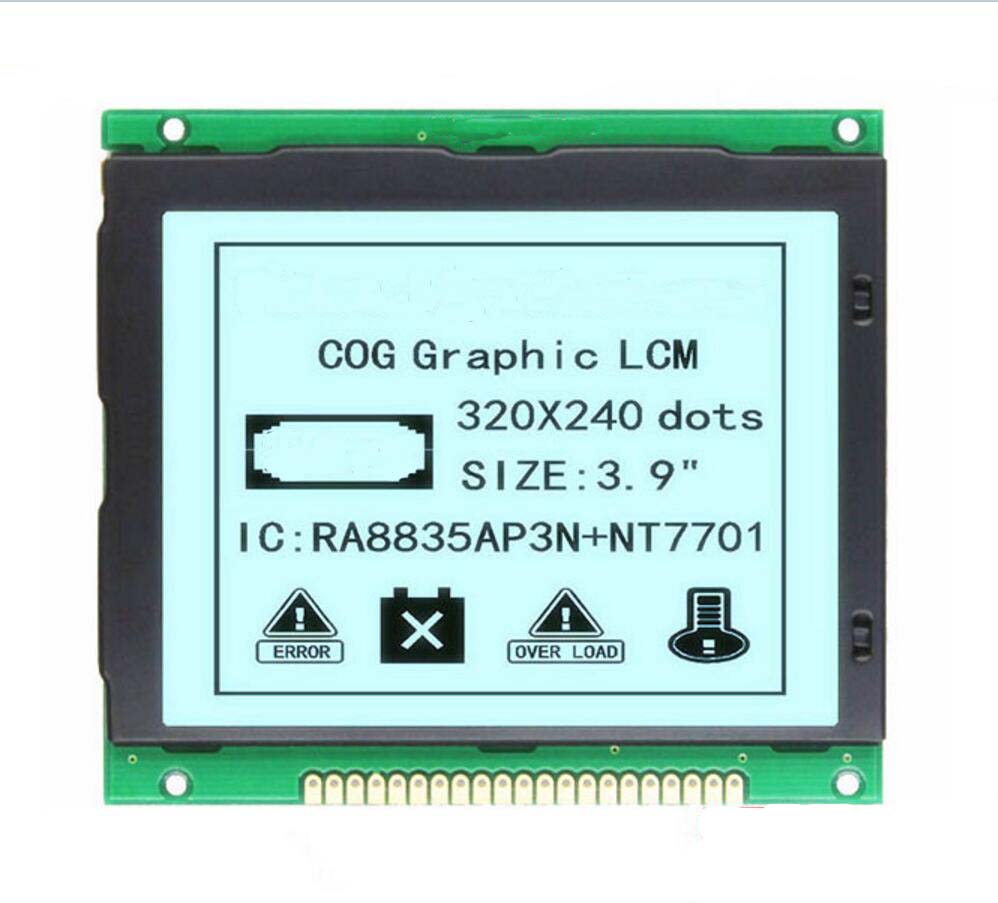

EG320240D139.0*100.0*11.0103.0*79.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG320240H147*108*12.5103.0*79.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG320240F160.0*109.0*11.0122.0*92.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG320240L160.0*120.0*11.0122.0*92RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5VYellow/blue/grey/black
EG320240G160.0*109.0*11.0122.0*92.0RA8835   or EQV6800   8-bit/8080 8-bit Parallel3.3V/5V(TP   optional)Yellow/blue/grey/black
EG320240M160.0*112.8*11.0122.0*92SDN8080G   or EQV8080   8-bit Parallel3.3V/5VYellow/blue/grey/black
480x64EG48064A290.0*73.0*9.5246.2*37.6SDN8080G   or EQV8080   8-bit Parallel5VYellow/blue/grey/black



Drive IC support with Chinese Character ROM


Display   TypePart NoChinese   characterModule SizeVADrive ICInterfaceVoltageColor
122x32EG12232ZA2x7.5character84.0*44.0*13.060.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12232ZB2x7.5character80.0*35.0*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12232ZC2x7.5character80.0*42.0*14.1560.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12232ZE2x7.5character79.0*28.0*8.760.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12232ZF2x7.5character96.8*35*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12232ZG2x7.5character66.5*44*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12232ZK2x7.5character66.5*44*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12232ZL2x7.5character72*46*13.060.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
128x32EG12832ZA2x8character110.0*65.0*14.576.0*25.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12832ZB2x8character84.0*44.0*14.270.0*20.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12832ZE2x8character80.0*42.2*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12832ZG2x8character80.6*35.0*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12832ZH2x8character72.0*36.0*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12832ZK2x8character83.5*37.5*8.565.0*17.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12832ZD2x8character70.0*55.5*13.060.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12832ZF2x8character80.6*42.8*12.860.0*18.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
128x64EG12864ZA4x8character93.0*70.0*13.072.0*40.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZB4x8character93.0*70.0*13.072.0*40.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZC4x8character133.2*65.2*13.073.4*38.8ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZD4x8character78.7*65.0*13.072.0*40.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZE4x8character101.5*85.25*13.072.0*40.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZF4x8character98.0*60.0*13.072.0*38.8ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZG4x8character93.0*70.0*13.070.7*38.8ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZH4x8character93.0*70.0*13.070.7*38.8ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG12864ZK4x8character78.0*70.0*12.562.0*44.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
160x32EG16032ZA2x10character122.0*44.0*14.099.0*24.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG16032ZB2x10character122.0*40.0*14.099.0*24.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
EG16032ZC2x10character67.61*29.92*8.062.5*16.7ST7920 or EQV8-bit/4-bit   Parallel,3 SPI5VYellow/blue/grey/black
EG16032ZD2x10character116.0*35.0*12.582.6*18.4ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
192x64EG19264ZA4x12character130.0*65.0*12.5104.0*39.0ST7920 or EQV8-bit/4-bit   Parallel,3 SPI3.3V/5VYellow/blue/grey/black
240x128EG240128Z8x15character144.0*104.0*14.0114.0*60.0RA8822 or EQV8-bit 6800/8080   Parallel3.3V/5VYellow/blue/grey/black
EG240128ZB8x15character144.0*104.0*14.0114.0*60.0RA8806 or EQV8-bit 6800/8080   Parallel3.3V/5V(TP optional)Yellow/blue/grey/black
240x160EG240160A (COG)10x15character97.4*58.4*9.575.0*46.5RA8806 or EQV8-bit 6800/8080   Parallel5VYellow/blue/grey/black
320x240EG320240ZE(320240E)15x20character160.0*109.0*11.0122.0*92RA8803 or EQV8-bit 6800/8080   Parallel5V(TP optional)Yellow/blue/grey/black
EG320240ZB15x20character160.0*109.0*11.0122.0*92RA8802 or EQV8-bit 6800/8080   Parallel5V(TP optional)Yellow/blue/grey/black
